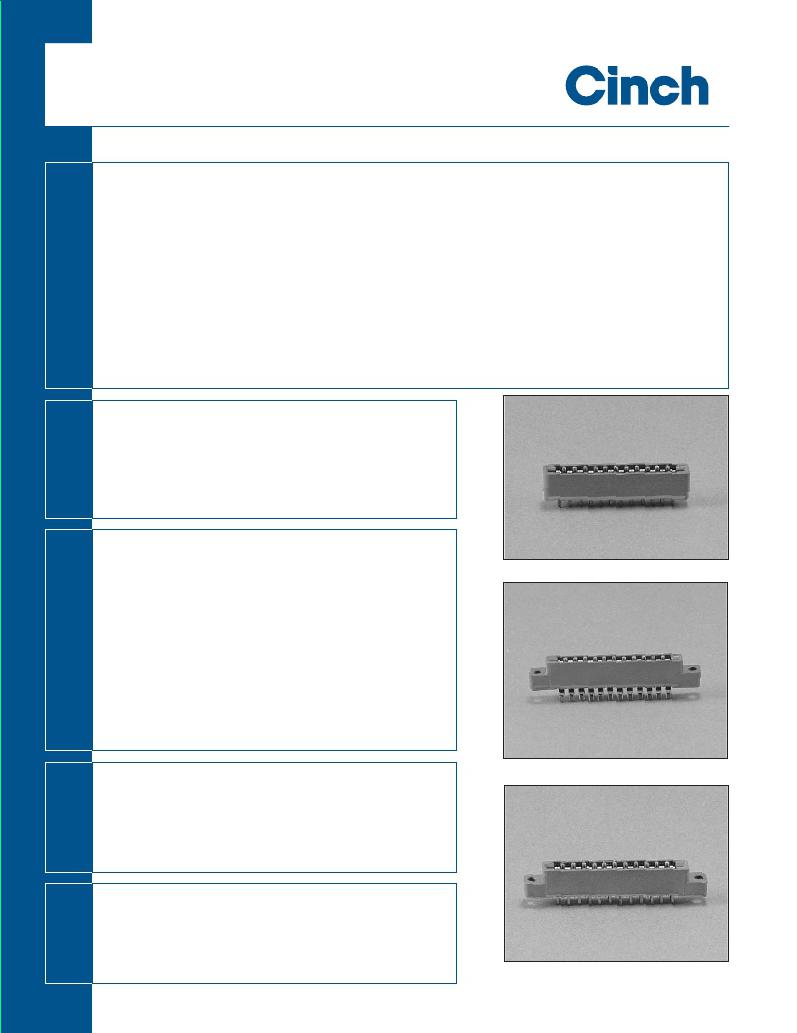

Edge Connector
High Reliability
.156" (3.96mm) Density Dip
Solder/Solder Eyelet
■ Dip solder tails, single readout, .156" (3.96mm) long or .234" (5.94mm) long.
■ Dip solder tails, double readout, .156" (3.96mm) or .234" (5.94mm) long on
.200" (5.08mm) row spacing, or .125" (3.18mm) long on .140" (3.56mm) row spacing.
■ Solder eyelet, single readout and double readout on .200" (5.08mm) row spacing.
■ Patented bifurcated bellows contacts for added contact reliability.
■ Ideal for applications involving vibration or board irregularities.
■ Contact positions: 6, 10, 12, 15, 18, 22, and 25.
■ Available with or without mounting ears.
■ Accepts single- or double-sided .062" (1.59mm) thick PC boards.
■ UL Recognized - file E170218 (UL1977) E130965 (UL1863).
Insulation Material: Diallyl phthalate, green
Contact Material: Phosphor bronze
Contact Plating: 30 μ " selective gold over 50 μ " copper in the
contact areas, 5 μ " gold on tails
Shock: Per MIL-STD-202E, Method 202
Operating Temperature: Dip solder: -65°C to +105°C
Solder eyelet: -65°C to +125°C
Vibration: Per MIL-STD-202E, Method 204, Condition B
Humidity: Per MIL-STD-202E, Method 103, Condition B
Accessories:
Polarizing Key: Two types (order separately):
a) for between-contact polarization and
b) for in-contact polarization
See page 2-74 for more information.
Card Guide Posts: (order separately):
Attach to mounting ears and guide PC board into connector
See page 2-74 for more information.
Withstanding Voltage:
Current Rating:
Contact Resistance:
Insulation Resistance:
1800 VAC RMS (@ sea level)
5 Amps
Dip solder: 6 Milliohms
Solder eyelet: 10 Milliohms
5000 Megohms minimum
Individual Contact Insertion and Separation Force:
16 oz. maximum with .070" (1.78mm) blade;
1 oz. minimum with .054" (1.37mm) blade
Marketed exclusively through distribution.
Call Toll Free: 1 (800) 323-9612
